Link API (1.0.0)

Download OpenAPI specification:Download

URL: https://www.paciolan.com/ License: Paciolan ®

Auth

Flow

All API calls require an Authorization: Bearer <bearer token> header.
Automated <bearer token> rotation is recommended.
Successful authentication rotation calls will return a new bearer token.

Request or refresh an authorization token

header Parameters

User-Agent required	string An identifying string in Product/Version format, where Version is a SemVer-compliant string, that uniquely identifies your application.
Accept required	string Default: application/json The only supported response type for this endpoint is application/json.
Content-Type required	string Default: application/json The only supported request type for this endpoint is application/json.
Request-ID required	string The integrator's external request ID for support traceablility and issue debugging. This string should be a UUID V4 value.

Request Body schema: application/json

grantType required	string Grant type authorization_code
code required	string Authorization code to generate access and refresh token. Make sure to use the authorization code provided.

Responses

Request samples

Payload
curl - Request
curl - Refresh

Content type

application/json

Example

authorization_code

{"grantType": "authorization_code",
"code": "string"
}

Response samples

200
4XX
5XX

Content type

application/json

{"accessToken": "hsfsdgfdsgvb4354gfnbnkaerAtrJKNnrtusiJNOuts",
"expiration": "2023-02-18T19:39:39.548608815Z",
"refreshToken": "sflk5j6q2kgmKjfrs_kijdngka9qpoutrei45gfnm",
"tokenType": "Bearer"
}

Secondary Market Flow

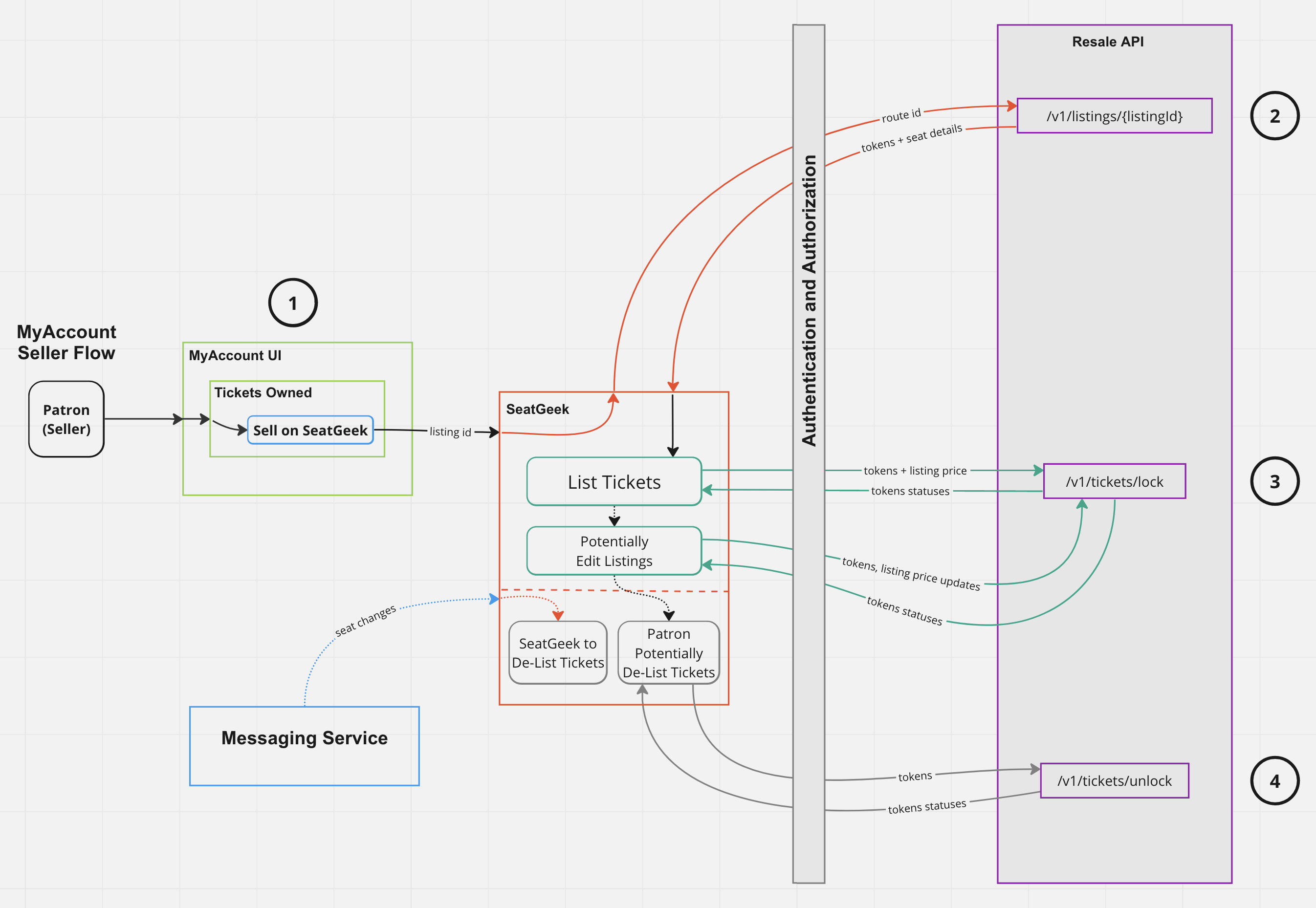

MyAccount Seller Flow

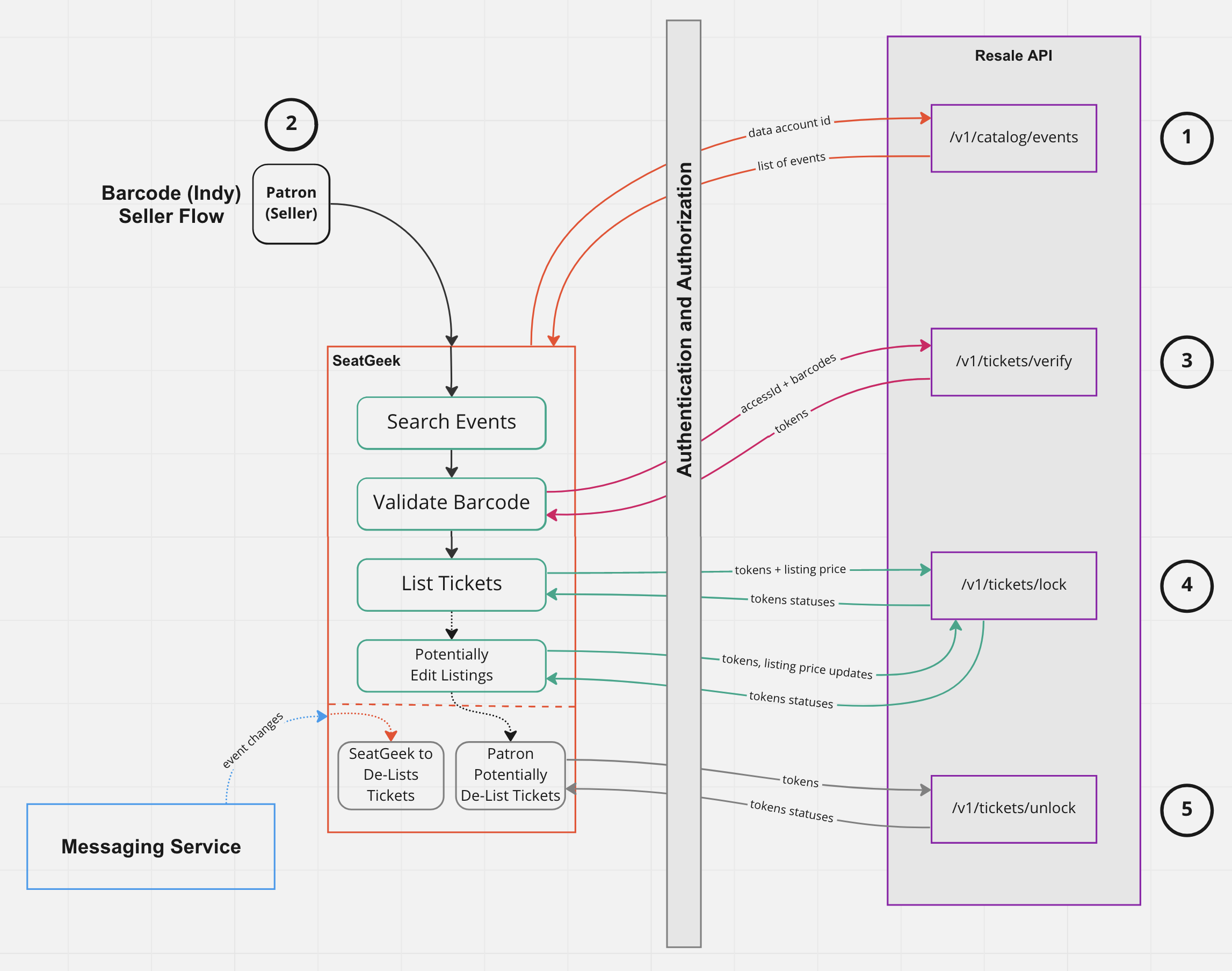

Barcode (Indy) Seller Flow

Indy Seller Flow

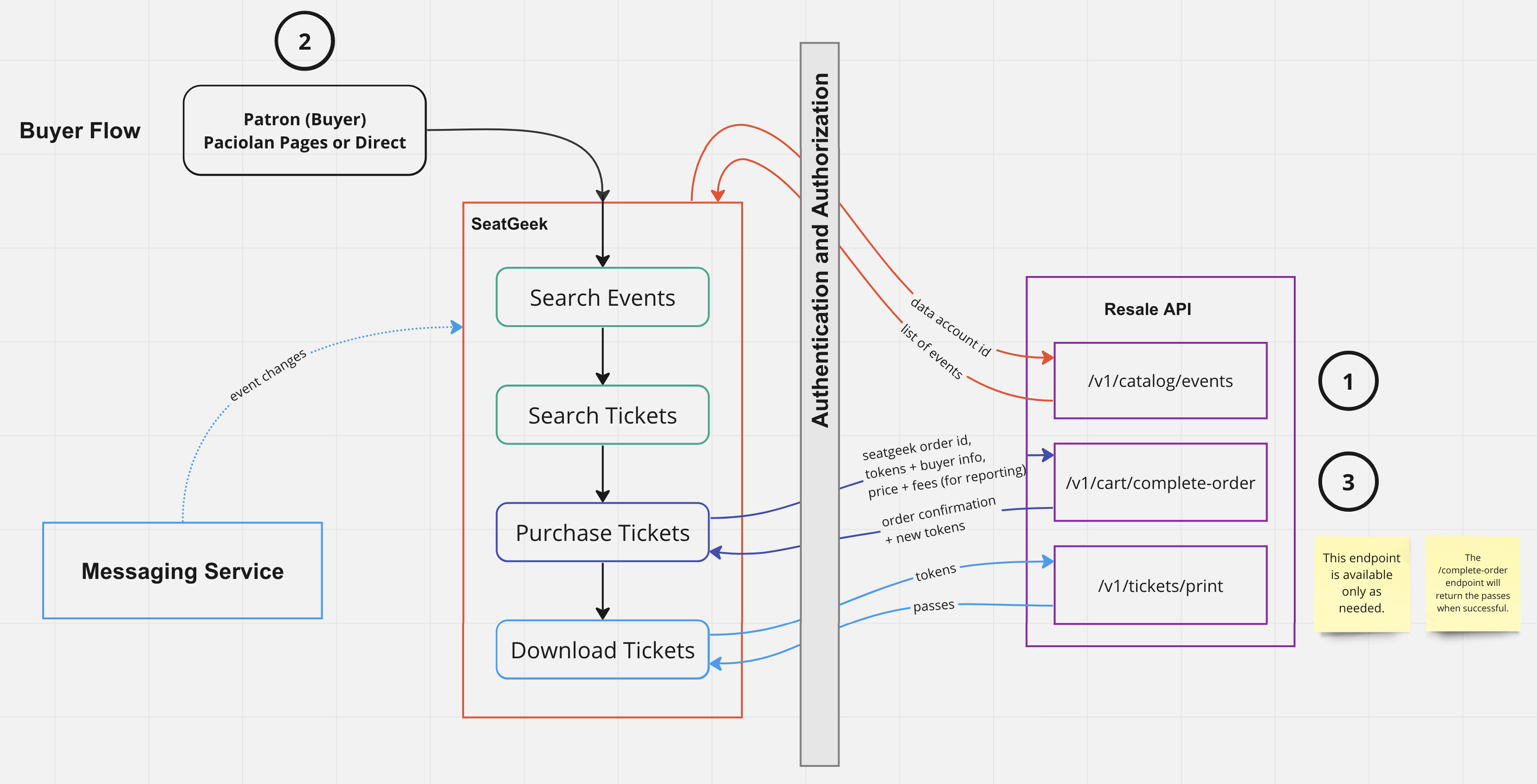

Buyer Flow

Messaging Service

A messaging service to push event and seat changes in real-time.

Flow

Paciolan's internal systems will publish messages to Amazon SNS when changes occur to events or seats, which will then be consumed by its subscribers.

Request an event message

header Parameters

Authorization

required

string

Example: Basic dGVzdDp0ZXN0

Authorization with Basic Auth

Request Body schema: application/json

required

object (eventData)

Request data

required

Array of objects

Collection of events with changes

Array

accessId required	string Main/Parking event accessId
seasonCode required	string Season code
itemCode required	string Item code
itemBasis	string Item basis
itemName required	string Item name Precedence: 1 Internet Name 2 Item Name 3. Event name
startDate required	string <date> (startDate) Date part (before "T" delimiter) of ISO 8601 compliant date.
required	string or string (startTime)
endDate required	string or null <date> (endDate) Date part (before "T" delimiter) of ISO 8601 compliant date.
required	(string or null) or (string or null) (endTime)
facilityCode required	string Facility code
facilityName required	string Facility Name

required

object

messageEntity required	string Value: "events" The name of the entity pushing the changes
pacOrganizationId required	number The client's data account ID
requestId required	string A unique ID provided for debugging purposes

Responses

Request samples

Payload

Content type

application/json

{"data": {"events": [{"accessId": "999:F23:F01",
"seasonCode": "F23",
"itemCode": "F01",
"itemBasis": "SINGLE",
"itemName": "Football Game 1",
"startDate": "2023-05-20",
"startTime": "20:30:00Z",
"endDate": "2023-05-20",
"endTime": "20:30:00Z",
"facilityCode": "ABC",
"facilityName": "Pavilion"
}
]
},
"metadata": {"messageEntity": "events",
"pacOrganizationId": 999,
"requestId": "a1b2c3"
}
}

Response samples

204
400

Content type

application/json

{ }

Request a seat message

header Parameters

Authorization

required

string

Example: Basic dGVzdDp0ZXN0

Authorization with Basic Auth

Request Body schema: application/json

required

object (seatData)

Request data

required

Array of objects

Collection of seats with changes

Array

accessId required	string The accessId for the event the seat is located in, which will always be the main/home or parking event.
season required	string Season code
item required	string Item code
section required	string Section code. (LEVEL:SECTION)
row required	string Row
startDate	string Seat
status required	string Enum: "LOCK" "UNLOCK" Seat status. e.g. Active listings need to be removed from integrator's site if the message received for such listed ticket receives a status of UNLOCK

required

object

messageEntity required	string Value: "seats" The name of the entity pushing the changes
pacOrganizationId required	number The client's data account ID
requestId required	string A unique ID provided for debugging purposes

Responses

Request samples

Payload

Content type

application/json

{"data": {"seats": [{"accessId": "999:F23:F01",
"season": "F23",
"item": "F01",
"section": "ES:9",
"row": "30",
"startDate": "25",
"status": "UNLOCK"
}
]
},
"metadata": {"messageEntity": "seats",
"pacOrganizationId": 129,
"requestId": "a1b2c3"
}
}

Response samples

204
400

Content type

application/json

{ }

Manifest Service

Catalog Service

Get catalog events

The events endpoint returns a list of items available for secondary.

query Parameters

startDate	string <date> Example: startDate=2023-05-20 Date in the format of YYYY-MM-DD. Applicable to events only. When specified, only those event items with a start date on or after this date will be returned.
seasonCode	string A (single) season code may be specified to filter output.
facilityCode	string A (single) facility code may be specified to filter output.

header Parameters

User-Agent required	string An identifying string in Product/Version format, where Version is a SemVer-compliant string, that uniquely identifies your application.
Authorization required	string Example: Basic dGVzdDp0ZXN0 Authorization with Basic Auth
Accept required	string Default: application/json The only supported response type for this endpoint is application/json.
Accept-Encoding	string gzip compression is supported.
Content-Type required	string Default: application/json The only supported request type for this endpoint is application/json.
PAC-Application-ID required	string The application identifier for which API access has been authorized; this value is typically expressed in reverse domain notation and is bound to an API key provided by Paciolan during provisioning.
PAC-API-Key required	string The API key provided by Paciolan for this application.
PAC-Channel-Code required	string The channel partner identifier issued to your organization by the Paciolan Partner Services team partner on-boarding.
Request-ID required	string The integrator's external request ID for support traceablility and issue debugging. This string should be a UUID V4 value.
PAC-Organization-ID required	string Example: 999 The client's data account ID to pull events from.

Responses

Request samples

curl

curl 'https://link-sandbox.paciolan.info/v1/catalog/events' \
  -H 'User-Agent: MyApplication/1.0' \
  -H 'Authorization: Bearer <BearerToken>'
  -H 'Accept: application/json' \
  -H 'Content-Type: application/json' \
  -H 'PAC-Application-ID: com.mycompany.myapp' \
  -H 'PAC-API-Key: <ApiKey>' \
  -H 'PAC-Channel-Code: my-application' \
  -H 'Request-ID: <RequestID>' \
  -H 'PAC-Organization-ID: 999'

Response samples

Content type

application/json

[{"seasonCode": "F23",
"itemCode": "P01",
"itemBasis": "SINGLE",
"itemName": "Parking for Football Game 1",
"startDate": "2023-05-20",
"startTime": "20:30:00Z",
"endDate": "2023-05-20",
"endTime": "20:30:00Z",
"facilityCode": "ABC",
"configurationCode": "DC",
"facilityName": "Pavilion",
"association": [{"type": "PARKING",
"associatedTo": ["999:F23:F02"
]
}
],
"accessId": "999:F23:P03"
}
]

Listing Service

Get listing

The Get Listings API endpoint will return seats (as tokens) grouped by event accessId for the given listingId provided.

Flow

A patron on MyAccount will select items/seats (from any event) that they want to list for resale.
The Paciolan system will then generate and append a listingId identifier to the integrator's website when navigating the user over.
Integrator will then make an API call to this Get Listings API with the listingId to receive tokens for each item/seat selected by the patron.

path Parameters

listingId

required

string

Example: A3qnemZ

Listing ID.

header Parameters

User-Agent required	string An identifying string in Product/Version format, where Version is a SemVer-compliant string, that uniquely identifies your application.
Authorization required	string Example: Basic dGVzdDp0ZXN0 Authorization with Basic Auth
Accept required	string Default: application/json The only supported response type for this endpoint is application/json.
Accept-Encoding	string gzip compression is supported.
Content-Type required	string Default: application/json The only supported request type for this endpoint is application/json.
PAC-Application-ID required	string The application identifier for which API access has been authorized; this value is typically expressed in reverse domain notation and is bound to an API key provided by Paciolan during provisioning.
PAC-API-Key required	string The API key provided by Paciolan for this application.
PAC-Channel-Code required	string The channel partner identifier issued to your organization by the Paciolan Partner Services team partner on-boarding.
Request-ID required	string The integrator's external request ID for support traceablility and issue debugging. This string should be a UUID V4 value.

Responses

Request samples

curl

curl 'https://link-sandbox.paciolan.info/v1/listings/A3qnemZ' \
  -H 'User-Agent: MyApplication/1.0' \
  -H 'Authorization: Bearer <BearerToken>'
  -H 'Accept: application/json' \
  -H 'Content-Type: application/json' \
  -H 'PAC-Application-ID: com.mycompany.myapp' \
  -H 'PAC-API-Key: <ApiKey>' \
  -H 'PAC-Channel-Code: my-application' \
  -H 'Request-ID: <RequestID>'

Response samples

200
404
500

Content type

application/json

[{"listingId": "A3qnemZ",
"tickets": [{"accessId": "string",
"seats": [{"season": "FB23",
"item": "FB01VIP",
"seatingType": "RESERVED",
"associationType": "VIP",
"seatAttributes": ["ADA"
],
"section": "ES:9",
"row": "30",
"seat": "26",
"token": "129BL7ASUULGLT2X0"
}
]
}
]
}
]

Ticket Service

Lock

The Lock API will lock the tokens provided to prevent any status changes to them.

Flow

While the listing is being created, there will be a request to API to lock the inventory. (Means protected)

header Parameters

User-Agent required	string An identifying string in Product/Version format, where Version is a SemVer-compliant string, that uniquely identifies your application.
Authorization required	string Example: Basic dGVzdDp0ZXN0 Authorization with Basic Auth
Accept required	string Default: application/json The only supported response type for this endpoint is application/json.
Accept-Encoding	string gzip compression is supported.
Content-Type required	string Default: application/json The only supported request type for this endpoint is application/json.
PAC-Application-ID required	string The application identifier for which API access has been authorized; this value is typically expressed in reverse domain notation and is bound to an API key provided by Paciolan during provisioning.
PAC-API-Key required	string The API key provided by Paciolan for this application.
PAC-Channel-Code required	string The channel partner identifier issued to your organization by the Paciolan Partner Services team partner on-boarding.
Request-ID required	string The integrator's external request ID for support traceablility and issue debugging. This string should be a UUID V4 value.

Request Body schema: application/json

One of

source

required

string

Enum: "INDIVIDUAL" "BROKER"

Source

required

object (lock-listing)

externalListingId

string

External Listing ID

totalPrice

number

Listing Price

required

Array of objects (lock-token)

Array of Tokens and Price

Array

token required	string Token
individualPrice	number Individual price of a ticket

required

object (lock-seller)

lastName

required

string

Account last name.

firstName

required

string

Account first name.

middleName

string

Account middle name.

Array of objects (lock-seller-address)

Object which contains address information.

Array

address1 required	string This represents street number & street name.
address2	string This represents suite number. This value can be null.
address3	string This value could be null.
address4	string This value could be null.
locality required	string This represents the city.
region required	string This represents the state/province.
postalCode required	string This represents the postalCode.
countryCode required	string This represents the country code.

Array of objects (lock-seller-phoneNumber)

This represents patron's phone number

Array

number required	string Patron phone number, unformatted, with all non-numeric characters removed. This field is required if phone number is required
formattedNumber	string Patron phone number formatted
extension	string This. could be null. Required if the phone number is required
countryCode required	string Patron phone number country code. This is required if the phone number is required

required

Array of objects (lock-seller-emailAddress)

Object which contains patron email information.

Array

email required	string Patron email address
optIn	boolean Patron marketing opt-in. If true, and if new patron is created, the API will set the email marketing flag to true. If the request resolves to existing patron then we WILL NOT update the email marketing flag for existing patrons.

Responses

Request samples

Payload
curl - My Account
curl - Others

Content type

application/json

{"source": "MY_ACCOUNT",
"listing": {"externalListingId": "string",
"totalPrice": 0,
"tokens": [{"token": "string",
"individualPrice": 0
}
]
},
"seller": {"lastName": "string",
"firstName": "string",
"middleName": "string",
"address": [{"address1": "string",
"address2": "string",
"address3": "string",
"address4": "string",
"locality": "string",
"region": "string",
"postalCode": "string",
"countryCode": "string"
}
],
"phoneNumber": [{"number": "string",
"formattedNumber": "string",
"extension": "string",
"countryCode": "string"
}
],
"emailAddress": [{"email": "string",
"optIn": true
}
]
}
}

Response samples

200
207
422

Content type

application/json

{"sellerIds": ["123456"
],
"success": [{"token": "98973476444",
"ownerId": "234567"
}
]
}

Unlock

The Unlock API will unlock tokens provided which will open that item/seat for status changes. This API is idempotent. All it does is unlock the inventory. (Flipping the mpreserve flag to false)

Flow

If the seller decides to unlist their items/seats (for any reason), then a request to unlock those tokens is needed.

header Parameters

User-Agent required	string An identifying string in Product/Version format, where Version is a SemVer-compliant string, that uniquely identifies your application.
Authorization required	string Example: Basic dGVzdDp0ZXN0 Authorization with Basic Auth
Accept required	string Default: application/json The only supported response type for this endpoint is application/json.
Accept-Encoding	string gzip compression is supported.
Content-Type required	string Default: application/json The only supported request type for this endpoint is application/json.
PAC-Application-ID required	string The application identifier for which API access has been authorized; this value is typically expressed in reverse domain notation and is bound to an API key provided by Paciolan during provisioning.
PAC-API-Key required	string The API key provided by Paciolan for this application.
PAC-Channel-Code required	string The channel partner identifier issued to your organization by the Paciolan Partner Services team partner on-boarding.
Request-ID required	string The integrator's external request ID for support traceablility and issue debugging. This string should be a UUID V4 value.

Request Body schema: application/json

tokens

required

Array of strings

Responses

Request samples

Payload
curl

Content type

application/json

{"tokens": ["98973476444",
"54457347644"
]
}

Response samples

200
207
409
422

Content type

application/json

{"success": [{"token": "98973476444",
"ownerId": "234567"
}
]
}

Complete Order

The Complete Order API endpoint commits a cart to a sale and records a financial transaction.

header Parameters

User-Agent required	string An identifying string in Product/Version format, where Version is a SemVer-compliant string, that uniquely identifies your application.
Authorization required	string Example: Basic dGVzdDp0ZXN0 Authorization with Basic Auth
Accept required	string Default: application/json The only supported response type for this endpoint is application/json.
Accept-Encoding	string gzip compression is supported.
Content-Type required	string Default: application/json The only supported request type for this endpoint is application/json.
PAC-Application-ID required	string The application identifier for which API access has been authorized; this value is typically expressed in reverse domain notation and is bound to an API key provided by Paciolan during provisioning.
PAC-API-Key required	string The API key provided by Paciolan for this application.
PAC-Channel-Code required	string The channel partner identifier issued to your organization by the Paciolan Partner Services team partner on-boarding.
Request-ID required	string The integrator's external request ID for support traceablility and issue debugging. This string should be a UUID V4 value.

Request Body schema: application/json

required

Array of objects (completeOrder-body-listing)

Listing Info

Array

externalListingId required	string External Listing ID
externalOrderId required	string External Order ID
totalPrice	number Total listing price (exclude fees)
totalFees	number Total fees
required	Array of objects Array of Objects Represents individual tickets with a token and price.

required

Array of objects (completeOrder-body-buyer)

Buyer Information

Array

firstName required	string Buyer's first name.
middleInitial	string Buyer's middle initial.
lastName required	string Buyer's last name.
required	object (completeOrder-body-buyer-phoneNumber)
	object (completeOrder-body-buyer-address)
required	object (completeOrder-body-buyer-emailAddress)

required

Array of objects (completeOrder-body-settlement)

Required for resale.

Array

totalAmountPaid required	number Total amount paid by the buyer(includes fees).
amountToSeller required	number Amount paid to the seller.
asyncCallbackUrl	string If the complete order call takes longer than expected, we will respond back with a status of "PENDING". If this callback URL is provided, our systems will then call it when the status updates, setting the request of the call to follow the response object definition below.

Responses

Request samples

Payload
curl

Content type

application/json

{"listing": [{"externalListingId": "SDFE3434JJRTER",
"externalOrderId": "1234567890",
"totalPrice": 100,
"totalFees": 4,
"tokens": [{"token": "129L7GVL7PX3KS9ZC",
"individualPrice": 50,
"individualFees": 2
}
]
}
],
"buyer": [{"firstName": "Tony",
"middleInitial": "string",
"lastName": "Stark",
"phoneNumber": {"number": "7149999999",
"formattedNumber": "string",
"extension": "string",
"countryCode": "US"
},
"address": {"address1": "123 Main Street",
"address2": "string",
"address3": "string",
"address4": "string",
"locality": "Irvine",
"region": "CA",
"postalCode": "92627",
"countryCode": "US"
},
"emailAddress": {"email": "tony@stark.com",
"optIn": true
}
}
],
"settlement": [{"totalAmountPaid": 52,
"amountToSeller": 45,
"asyncCallbackUrl": "string"
}
]
}

Response samples

200
207
422

Content type

application/json

Example

{"status": "COMPLETE",
"processId": "a1b2c3",
"paid": 104,
"offers": [{"quantity": 1,
"seasonCode": "CALI",
"itemCode": "RSHAHLA",
"basis": "SINGLE",
"event": {"name": "RSHAH LA",
"priceLevel": 1,
"seats": [{"section": "1:1",
"row": "2",
"seat": "1",
"sequence": 1,
"accessId": "431:BB19:BB01",
"token": "badf123aadadf123a",
"mobileUrl": "https://ticketdelivery.eveneue.net/tickets/F19/F02/3u328u39hfisudfisfhw-mobile.pdf",
"applePassUrl": "https://ticketdelivery.eveneue.net/tickets/F19/F02/3u328u39hfisudfisfhx.pkpass",
"googlePassUrl": "https://ticketdelivery.eveneue.net/tickets/F19/F02/3u328u39hfisudfisfhx.txt",
"ownerId": "135792"
}
]
},
"priceType": {"name": "Adult"
}
}
],
"transactions": [{"season": "CALI",
"transaction": "264667"
}
]
}

Get complete order status

The Complete Order Status API endpoint returns the state of an order as received by the /cart/complete-order call. This endpoint is needed when the response to the /cart/complete-order has a status of PENDING, and no asyncCallbackUrl was provided for the system to inform the caller of a status change. Calling this endpoint will provide an update.

path Parameters

processId

required

string

Example: d4e5f6

Proccess ID.

header Parameters

User-Agent required	string An identifying string in Product/Version format, where Version is a SemVer-compliant string, that uniquely identifies your application.
Authorization required	string Example: Basic dGVzdDp0ZXN0 Authorization with Basic Auth
Accept required	string Default: application/json The only supported response type for this endpoint is application/json.
Accept-Encoding	string gzip compression is supported.
Content-Type required	string Default: application/json The only supported request type for this endpoint is application/json.
PAC-Application-ID required	string The application identifier for which API access has been authorized; this value is typically expressed in reverse domain notation and is bound to an API key provided by Paciolan during provisioning.
PAC-API-Key required	string The API key provided by Paciolan for this application.
PAC-Channel-Code required	string The channel partner identifier issued to your organization by the Paciolan Partner Services team partner on-boarding.
Request-ID required	string The integrator's external request ID for support traceablility and issue debugging. This string should be a UUID V4 value.

Responses

Request samples

curl

curl 'https://link-sandbox.paciolan.info/v1/cart/complete-order/123456' \
  -H 'User-Agent: MyApplication/1.0' \
  -H 'Authorization: Bearer <BearerToken>'
  -H 'Accept: application/json' \
  -H 'Content-Type: application/json' \
  -H 'PAC-Application-ID: com.mycompany.myapp' \
  -H 'PAC-API-Key: <ApiKey>' \
  -H 'PAC-Channel-Code: my-application' \
  -H 'Request-ID: <RequestID>'

Response samples

200
401
403
404
500

Content type

application/json

{"processId": "d4e5f6",
"status": "PENDING"
}

Verify

This call will return ticket details for a group of barcode/tokens that were successfully verified as valid.

Flow

The tokens and/or barcodes are submitted, the request will reach to API.
The API will validate each token and barcode by calling the DB or miscroservices.
Once all the tickets are validated, the API will return the tickets' info + validate code.

Assumptions

For each and every token integrator will make a call to API to fetch the ticket validity.

header Parameters

User-Agent required	string An identifying string in Product/Version format, where Version is a SemVer-compliant string, that uniquely identifies your application.
Authorization required	string Example: Basic dGVzdDp0ZXN0 Authorization with Basic Auth
Accept required	string Default: application/json The only supported response type for this endpoint is application/json.
Accept-Encoding	string gzip compression is supported.
Content-Type required	string Default: application/json The only supported request type for this endpoint is application/json.
PAC-Application-ID required	string The application identifier for which API access has been authorized; this value is typically expressed in reverse domain notation and is bound to an API key provided by Paciolan during provisioning.
PAC-API-Key required	string The API key provided by Paciolan for this application.
PAC-Channel-Code required	string The channel partner identifier issued to your organization by the Paciolan Partner Services team partner on-boarding.
Request-ID required	string The integrator's external request ID for support traceablility and issue debugging. This string should be a UUID V4 value.

Request Body schema: application/json

required

Array of objects or objects

Array of objects which holds Tokens, Barcodes & AccessId

Array

One of

accessId required	string The event Id (representing the access dataaccount) for the corresponding token
tokens required	Array of strings Array of Tokens (must not be present if barcodes are present)

Responses

Request samples

Payload
curl - Token
curl - Barcode

Content type

application/json

{"tickets": [{"accessId": "123:BB19:BB01",
"tokens": ["88973476445",
"55457347694"
]
}
]
}

Response samples

200
207
422

Content type

application/json

{"tokens": [{"accessId": "129:FB23:FB01",
"success": {"seats": [{"token": "1234567890123456",
"season": "BB19",
"event": "BB01",
"section": "U:100",
"row": "AA",
"seat": "14",
"seatingType": "RESERVED",
"associationType": "string",
"seatAttributes": ["string"
],
"ownerId": "234567"
}
]
}
}
]
}

Print

The Print API can be used first time to retrieve the ticket.

Flow

After a successful cart checkout, this API will enable the 3rd party vendor to retrieve the digital tickets

Validations

If request payload contains tokens belonging to more than 1 organization ID then we reject as BAD_REQUEST

header Parameters

User-Agent required	string An identifying string in Product/Version format, where Version is a SemVer-compliant string, that uniquely identifies your application.
Authorization required	string Example: Basic dGVzdDp0ZXN0 Authorization with Basic Auth
Accept required	string Default: application/json The only supported response type for this endpoint is application/json.
Accept-Encoding	string gzip compression is supported.
Content-Type required	string Default: application/json The only supported request type for this endpoint is application/json.
PAC-Application-ID required	string The application identifier for which API access has been authorized; this value is typically expressed in reverse domain notation and is bound to an API key provided by Paciolan during provisioning.
PAC-API-Key required	string The API key provided by Paciolan for this application.
PAC-Channel-Code required	string The channel partner identifier issued to your organization by the Paciolan Partner Services team partner on-boarding.
Request-ID required	string The integrator's external request ID for support traceablility and issue debugging. This string should be a UUID V4 value.

Request Body schema: application/json

externalOrderId required	string External Order ID
tokens required	Array of strings Array of Tokens

Responses

Request samples

Payload
curl

Content type

application/json

{"externalOrderId": "123456",
"tokens": ["88973476445",
"55457347694"
]
}

Response samples

200
207
422

Content type

application/json

{"tickets": [{"token": "1234567890123456",
"applePassUrl": "https://ticketdelivery.eveneue.net/tickets/F19/F02/3u328u39hfisudfisfhw.pkpass",
"googlePassUrl": "https://ticketdelivery.eveneue.net/tickets/F19/F02/3u328u39hfisudfisfhw.txt",
"ownerId": "234567"
}
]
}

Ticket

Initiate Transfer

This call will create a transfer ticket request that can be accepted or cancel later.

query Parameters

distributorCode

string

Example: distributorCode=AMTX

Distributor code. Required if initiating transfer with seat details.

header Parameters

User-Agent required	string An identifying string in Product/Version format, where Version is a SemVer-compliant string, that uniquely identifies your application.
Authorization required	string Example: Basic dGVzdDp0ZXN0 Authorization with Basic Auth
Accept required	string Default: application/json The only supported response type for this endpoint is application/json.
Accept-Encoding	string gzip compression is supported.
Content-Type required	string Default: application/json The only supported request type for this endpoint is application/json.
PAC-Application-ID required	string The application identifier for which API access has been authorized; this value is typically expressed in reverse domain notation and is bound to an API key provided by Paciolan during provisioning.
PAC-API-Key required	string The API key provided by Paciolan for this application.
PAC-Channel-Code required	string The channel partner identifier issued to your organization by the Paciolan Partner Services team partner on-boarding.
Request-ID required	string The integrator's external request ID for support traceablility and issue debugging. This string should be a UUID V4 value.
PAC-Organization-ID required	string Example: 999 The client's data account ID to pull events from.

Request Body schema: application/json

linkId

string

Link ID

siteId

string

Site ID

baseUrl

string

Base URL for acceptance

required

Array of Seats (object) or Items (object)

Array of Objects

Array

Any of

required	object Recipient details
required	Array of objects Seat details for transfers. Required if calling without "Items" array.
required	object Sender details

Responses

Request samples

Payload
Transfer with Seat Details
Transfer with Tokens

Content type

application/json

{"linkId": "string",
"siteId": "string",
"baseUrl": "string",
"transferRequests": [{"recipient": {"phone": "string",
"email": "ta236@paciolan.com",
"recipientFirstName": "Juan",
"recipientLastName": "Ramirez"
},
"seats": [{"season": "FB19",
"event": "FB03",
"priceLevel": "1",
"priceType": "A",
"seatInfo": {"level": "One",
"section": "2",
"row": 12,
"seats": 8,
"soldFor": "13.13",
"marketplace": "store"
}
}
],
"sender": {"patronId": "3785222"
}
}
]
}

Response samples

200
400

Content type

application/json

{"patronId": "3785222",
"confirmationCd": "3785222-AMTX:10237",
"sentDt": "06/07/2023 23:46:03",
"expireDt": "06/14/2023 23:46:03",
"transferId": "w53hKM1ZPmDBgYsq68VW6xR6KLLeoWCR",
"transferStatus": "string",
"url": "https://qfnq-bqfn80-amtx.paciolan.info/myaccount/receive/xnc3t7KpSQQxLr9SmdtnUXs74qHPfrz2?linkID=BQFN80-AMTX&siteId=ev_BQFN80-AMTX"
}

Cancel Transfer

This call will cancel the transfer.

path Parameters

confirmationCd

required

string

Example: 3785222-AMTX:10555

Confirmation CD

header Parameters

User-Agent required	string An identifying string in Product/Version format, where Version is a SemVer-compliant string, that uniquely identifies your application.
Authorization required	string Example: Basic dGVzdDp0ZXN0 Authorization with Basic Auth
Accept required	string Default: application/json The only supported response type for this endpoint is application/json.
Accept-Encoding	string gzip compression is supported.
Content-Type required	string Default: application/json The only supported request type for this endpoint is application/json.
PAC-Application-ID required	string The application identifier for which API access has been authorized; this value is typically expressed in reverse domain notation and is bound to an API key provided by Paciolan during provisioning.
PAC-API-Key required	string The API key provided by Paciolan for this application.
PAC-Channel-Code required	string The channel partner identifier issued to your organization by the Paciolan Partner Services team partner on-boarding.
Request-ID required	string The integrator's external request ID for support traceablility and issue debugging. This string should be a UUID V4 value.
PAC-Organization-ID required	string Example: 999 The client's data account ID to pull events from.

Responses

Request samples

curl

curl --location --request DELETE 'https://link-sandbox.paciolan.info/v1/tickets/transfer/3785222-AMTX:10555' \
  --header 'User-Agent: MyApplication/1.0' \
  --header 'Authorization: Bearer <BearerToken>' \
  --header 'PAC-Channel-Code: my-application' \
  --header 'PAC-Application-ID: com.mycompany.myapp' \
  --header 'PAC-API-Key: <ApiKey>' \
  --header 'Request-ID: <RequestID>' \
  --header 'PAC-Organization-ID: 999' \
  --header 'Content-Type: application/json'

Response samples

200
400

Content type

application/json

{"patronId": "3785222",
"confirmationCd": "3785222-AMTX:10270",
"cancelDt": "06/15/2023 09:43:12",
"transferStatus": "Cancelled"
}

Transfer History

This call will return transfer history.

path Parameters

confirmationCd

required

string

Example: 3785222-AMTX:10555

Confirmation CD

header Parameters

User-Agent required	string An identifying string in Product/Version format, where Version is a SemVer-compliant string, that uniquely identifies your application.
Authorization required	string Example: Basic dGVzdDp0ZXN0 Authorization with Basic Auth
Accept required	string Default: application/json The only supported response type for this endpoint is application/json.
Accept-Encoding	string gzip compression is supported.
Content-Type required	string Default: application/json The only supported request type for this endpoint is application/json.
PAC-Application-ID required	string The application identifier for which API access has been authorized; this value is typically expressed in reverse domain notation and is bound to an API key provided by Paciolan during provisioning.
PAC-API-Key required	string The API key provided by Paciolan for this application.
PAC-Channel-Code required	string The channel partner identifier issued to your organization by the Paciolan Partner Services team partner on-boarding.
Request-ID required	string The integrator's external request ID for support traceablility and issue debugging. This string should be a UUID V4 value.
PAC-Organization-ID required	string Example: 999 The client's data account ID to pull events from.

Responses

Request samples

curl

curl --location 'https://link-sandbox.paciolan.info/v1/tickets/transfer/3785222-AMTX:10555' \
  --header 'User-Agent: MyApplication/1.0' \
  --header 'Authorization: Bearer <BearerToken>' \
  --header 'PAC-Channel-Code: my-application' \
  --header 'PAC-Application-ID: com.mycompany.myapp' \
  --header 'PAC-API-Key: <ApiKey>' \
  --header 'Request-ID: <RequestID>' \
  --header 'Content-Type: application/json'

Response samples

200
400

Content type

application/json

{"transferId": "3785222-AMTX:10237",
"recipientFirstName": "Juan",
"recipientLastName": "Ramirez",
"history": [{"op": "initiate",
"ts": "2023-06-14T07:23:05.281+0000",
"initiator": "transferrer"
}
],
"createTs": "2023-06-14T07:23:05.281+0000"
}

Accept Transfer

This call will accept a pending transfer request to the recipent user.

query Parameters

distributorCode

string

Example: distributorCode=AMTX

Distributor code. Required if initiated transfer with seat details.

header Parameters

User-Agent required	string An identifying string in Product/Version format, where Version is a SemVer-compliant string, that uniquely identifies your application.
Authorization required	string Example: Basic dGVzdDp0ZXN0 Authorization with Basic Auth
Accept required	string Default: application/json The only supported response type for this endpoint is application/json.
Accept-Encoding	string gzip compression is supported.
Content-Type required	string Default: application/json The only supported request type for this endpoint is application/json.
PAC-Application-ID required	string The application identifier for which API access has been authorized; this value is typically expressed in reverse domain notation and is bound to an API key provided by Paciolan during provisioning.
PAC-API-Key required	string The API key provided by Paciolan for this application.
PAC-Channel-Code required	string The channel partner identifier issued to your organization by the Paciolan Partner Services team partner on-boarding.
Request-ID required	string The integrator's external request ID for support traceablility and issue debugging. This string should be a UUID V4 value.

Request Body schema: application/json

transferId

required

string

Transfer ID

object

Recipient details

phone	string Recipient phone
email required	string Recipient email
recipientFirstName required	string Recipient first name. Required when calling after initiating transfer with tokens.
recipientLastName required	string Recipient last name. Required when calling after initiating transfer with tokens.

Responses

Request samples

Payload
curl - Seat Details
curl - With Tokens

Content type

application/json

{"transferId": "string",
"Recipient": {"phone": "string",
"email": "string",
"recipientFirstName": "string",
"recipientLastName": "string"
}
}

Response samples

200
400
500

Content type

application/json

{"confirmationCd": "3785222-AMTX:10237",
"transferId": "w53hKM1ZPmDBgYsq68VW6xR6KLLeoWCR"
}

Link API (1.0.0)

Auth

Flow

Request or refresh an authorization token

header Parameters

Request Body schema: application/json

Responses

Success

Client Error

Server Error

Request samples

Response samples

Secondary Market Flow

MyAccount Seller Flow

Barcode (Indy) Seller Flow

Buyer Flow

Messaging Service

Flow

Request an event message

header Parameters

Request Body schema: application/json

Responses

No Content

Bad Request

Request samples

Response samples

Request a seat message

header Parameters

Request Body schema: application/json

Responses

No Content

Bad Request

Request samples

Response samples

Manifest Service

Catalog Service

Get catalog events

query Parameters

header Parameters

Responses

Success

Response Notes

Bad Request

Unauthorized

Forbidden

Not Found

Unprocessable Content

Internal Server Error

Request samples

Response samples

Listing Service

Get listing

Flow

path Parameters

header Parameters

Responses

Success

Not Found

Internal Server Error

Request samples

Response samples

Ticket Service

Lock

Flow

header Parameters

Request Body schema: application/json

Responses

Success

Partial Failure Response

Unprocessable Content

Request samples

Response samples

Unlock

Flow

header Parameters

Request Body schema: application/json

Responses

Success

Partial Failure Response

Conflict
